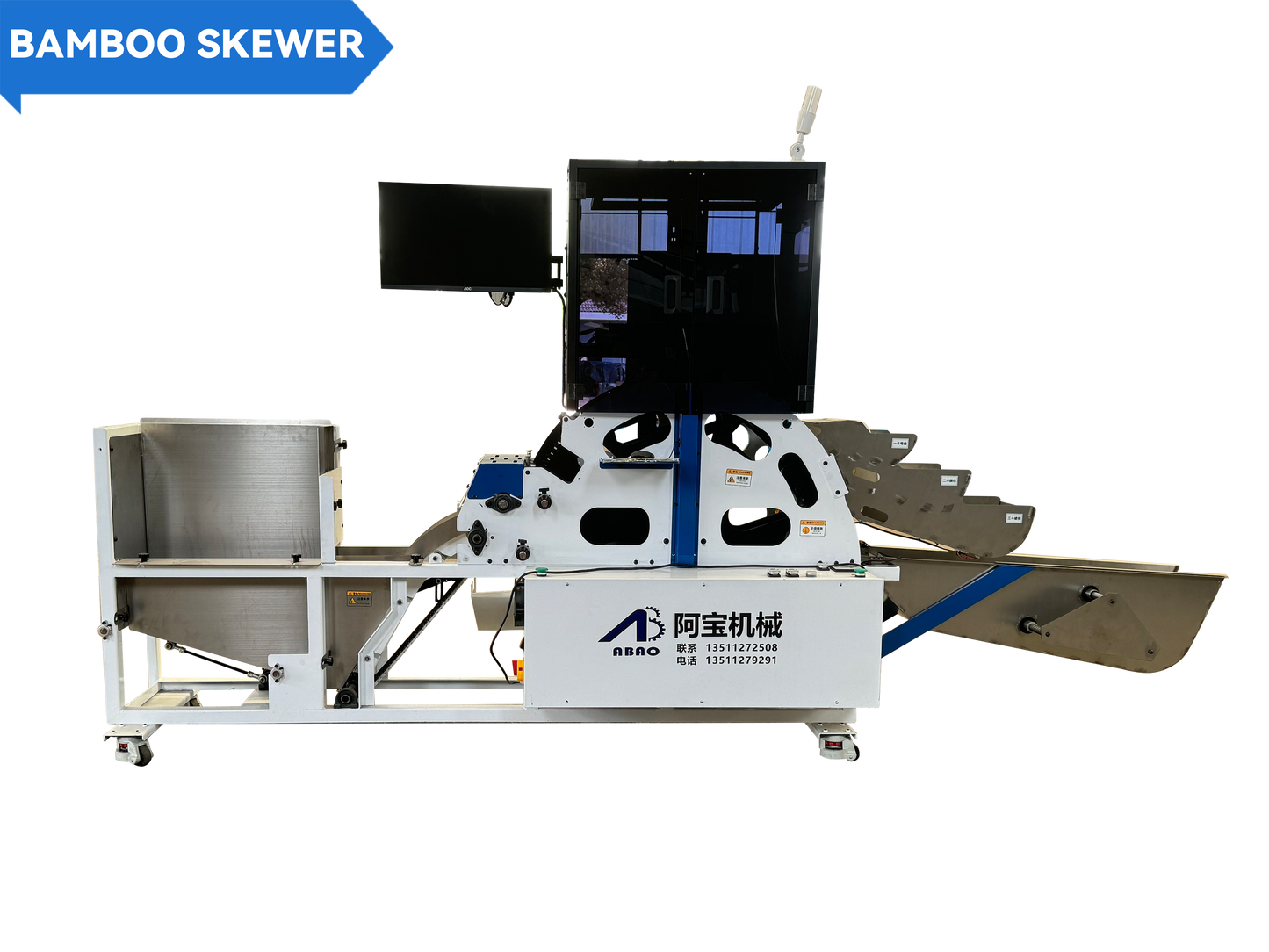

Full-Automatic AI Image Bamboo Skewer Sorting Machine, Automatic AI Image Bamboo Skewer Defect Sorting Machine

Full-Automatic AI Image Bamboo Skewer Sorting Machine, Automatic AI Image Bamboo Skewer Defect Sorting Machine

Description

Relying on dual servo computer control, the Automatic Bamboo Skewer Length Setting Machine of A'bao Bamboo & Wood Machinery can achieve precise fixed-length cutting of long bamboo strips from 65mm to 2000mm, adapting to the fixed-length cutting needs of various bamboo skewers and strips. With a daily output of 3 million bamboo skewers, it is the core supporting equipment for mass processing in bamboo and wood processing factories and bamboo skewer production workshops.

Quantity
WeChat: 17682435024
Email: AJabaoMachinery@outlook.com
View full details
Technical Specifications of Full-Automatic AI Image Bamboo Skewer Sorting Machine
Voltage 220V
Motor Power 1.2KW
Dimensions L: 3800 mm W: 800 mm H: 1620 mm
Weight 200KG
Application Scope Length: 150mm–250mm or 250mm–350mm (length tolerance within 100mm)
Product: Long Bamboo & Wood Strips
Thickness/Diameter: 3 approximate specifications
Service: Customization Available
Daily Output Approx. 750–900 pieces per minute
Chopstick Packing Machine

Function

① The Full-Automatic AI Image Bamboo Skewer Sorting Machine of A'bao Bamboo & Wood Machinery adopts AI image computer intelligent control and is equipped with a high-precision visual recognition system. It can accurately identify and sort out various unqualified bamboo skewers with irregular shapes, broken edges, half-length defects, gaps, mildew and blackening, featuring high sorting precision, low miss rate and no manual intervention throughout the process.
② The Automatic AI Image Bamboo Skewer Defect Sorting Machine of A'bao Bamboo & Wood Machinery is multi-functional. In addition to defect sorting, it has a built-in counting function that achieves accurate counting while sorting, eliminating the subsequent manual statistics process and further improving production efficiency.
③ The machine has strong adaptability. Bamboo skewers of 3 similar thickness specifications can be sorted by the same machine, and it is also compatible with the processing needs of bamboo skewers with a length difference within 10 centimeters.
④ It boasts excellent sorting efficiency, capable of sorting 750-900 bamboo skewers per minute, which meets the defect sorting needs of large-scale production. It also supports custom customization, with equipment parameters adjustable according to customers' production requirements.

Product Video Demonstration
Equipment Required for Disposable Bamboo Skewer Production

OPTION 1

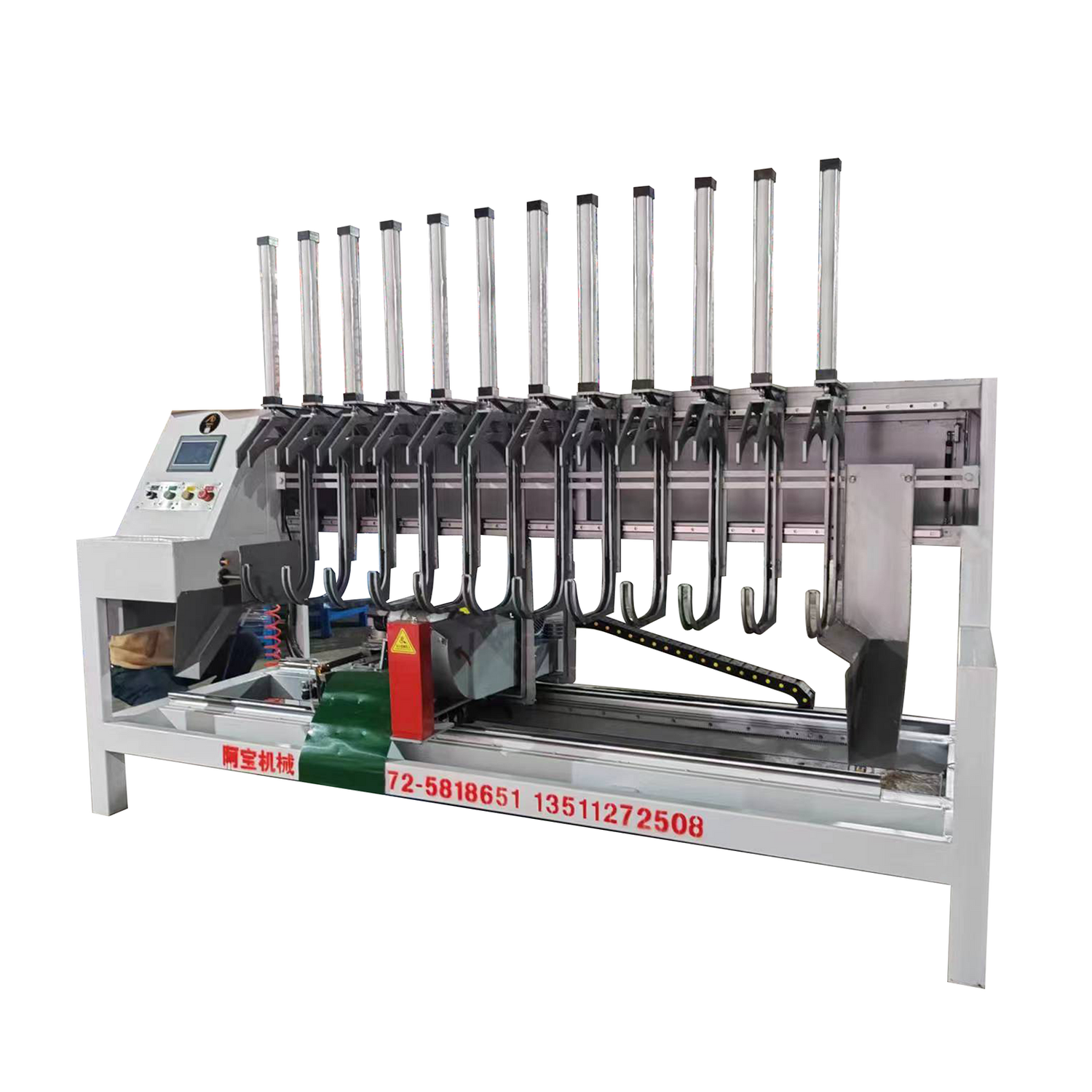

Numerical Control Bamboo Skewer Precision Cutting Machine

Numerical Control Bamboo Skewer Precision Cutting Machine

High-Speed Bamboo Skewer Polishing Machine

High-Speed Bamboo Skewer Polishing Machine

Bamboo BBQ Stick Sharpening Machine

Bamboo BBQ Stick Sharpening Machine

OPTION 2

Numerical Control Bamboo Skewer Precision Cutting Machine

Numerical Control Bamboo Skewer Precision Cutting Machine

High-Speed Bamboo Skewer Polishing Machine

High-Speed Bamboo Skewer Polishing Machine

Bamboo BBQ Stick Sharpening Machine

Bamboo BBQ Stick Sharpening Machine

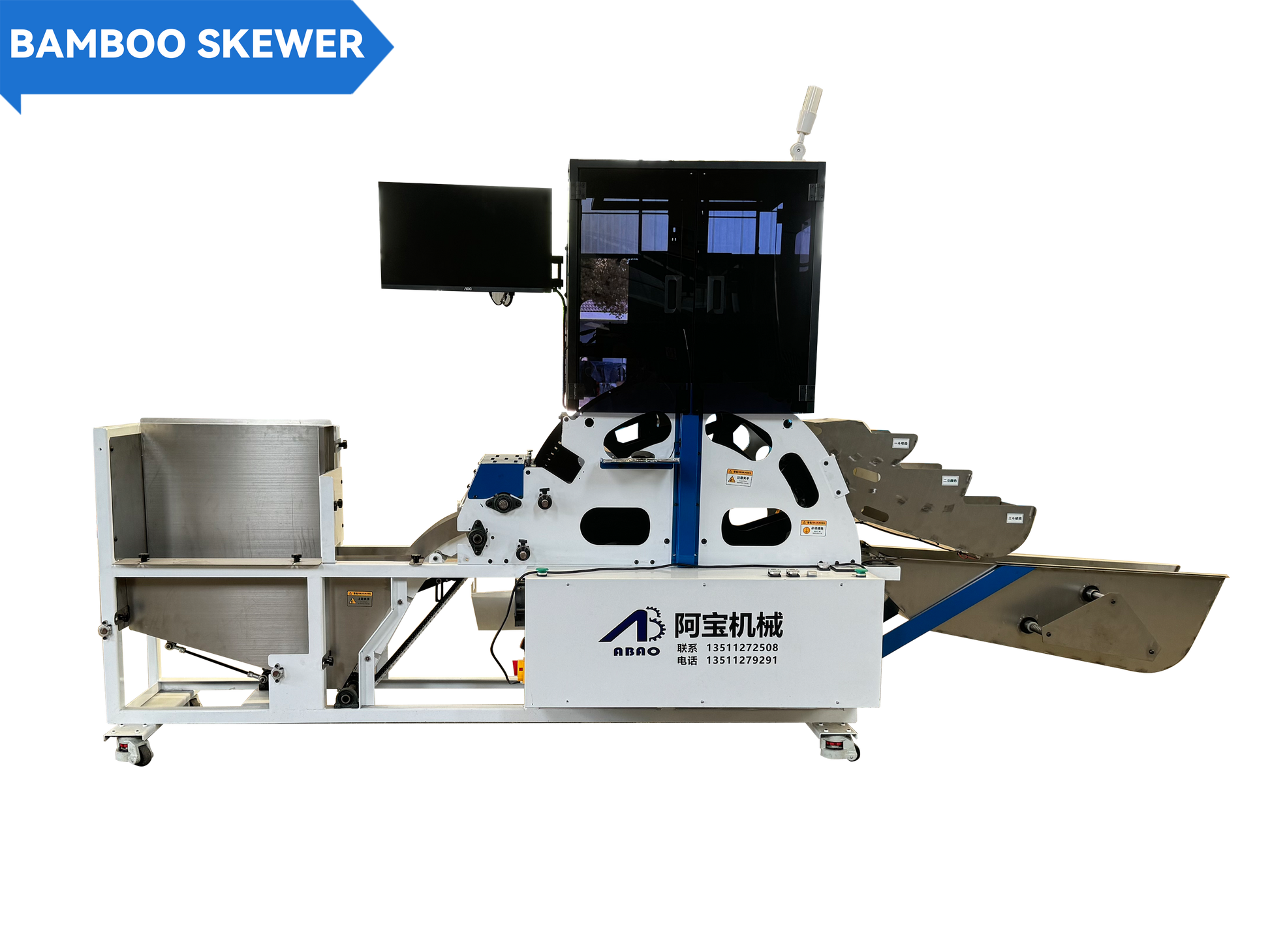

Full-Automatic AI Image Bamboo Skewer Sorting Machine

Full-Automatic AI Image Bamboo Skewer Sorting Machine

High-Speed Bamboo Skewer Packing Machine

High-Speed Bamboo Skewer Packing Machine
